The EDM Specialists
Wire EDM   •   Ram EDM   •   Small Hole EDM
 Quick Turnaround—24 Hour/Day Operation

We can perform EDM work for such industries as: oil field, petrochemical, turbo, medical, space, aeronautical, aerospace, telecommunication, auto, electronics, energy, defense, tools, and molds. Whether wire EDM, ram EDM, or small hole EDM work is for small medical parts, tall parts for the oil industry, or large turbines for the energy industry, Reliable EDM has the production capability.

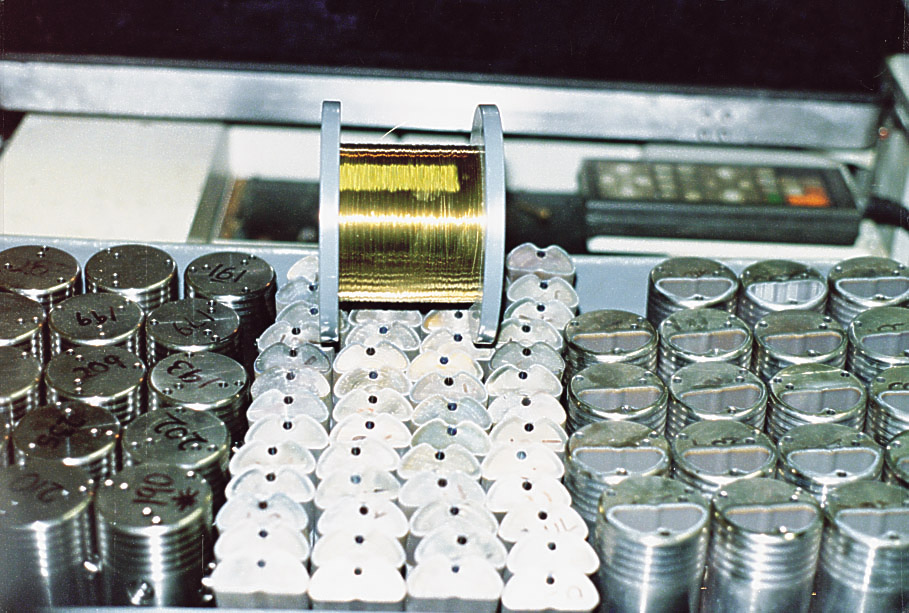

Wire EDM

We have over 40 wire EDMs—over 75% are submersible—9 are large submersible EDMs: tank sizes up to 52” and 26.5” in Z submersed. We specialize in cutting tall parts.



● Modified wire EDMs Machines to cut up to 62” tall
● Cut parts weighing up to 10,000 lbs
● Cut tapers to 45 degrees
● Cut unattended with automatic threading
● Accuracies to +/- .0001”
● Surface finishes to 8 RMS

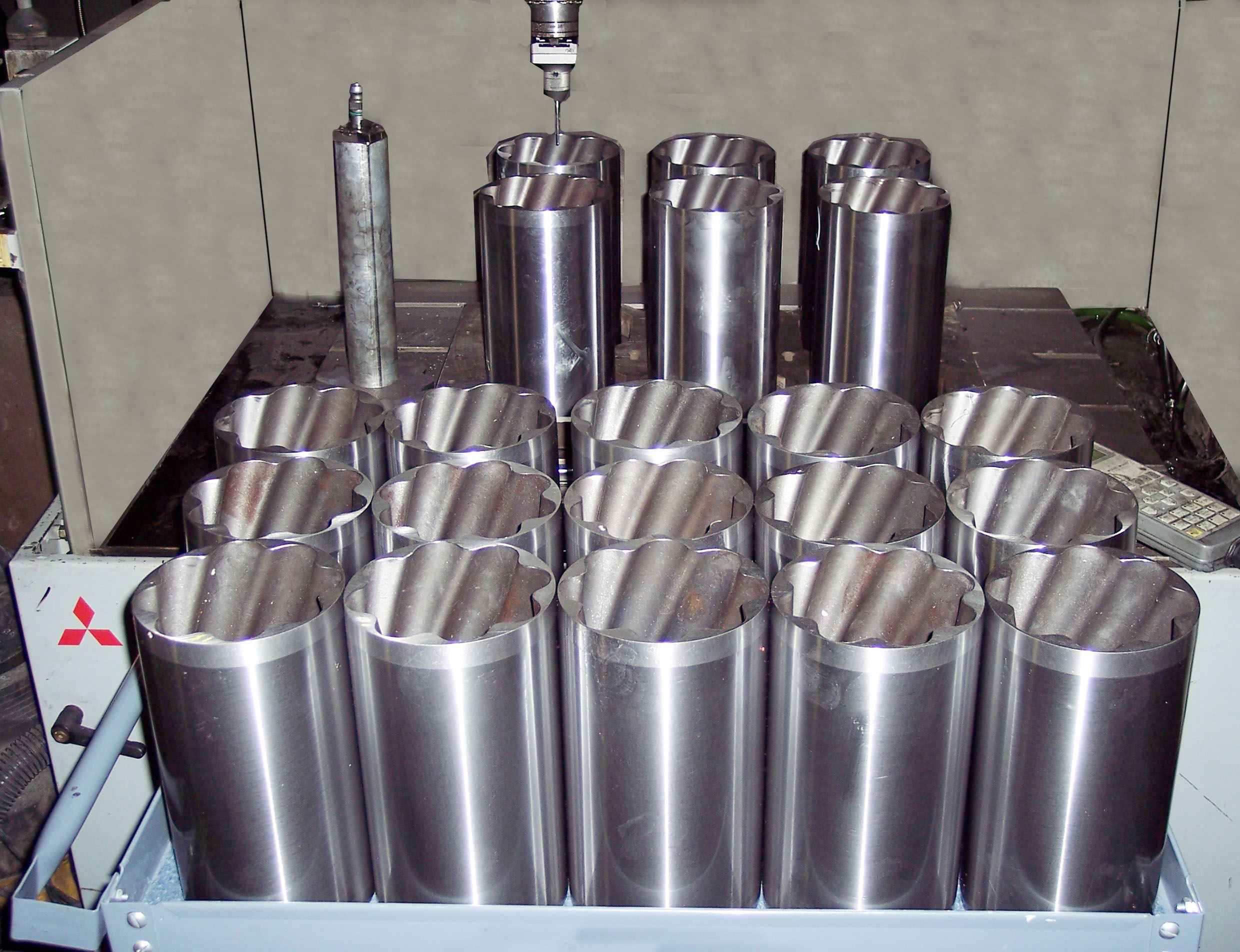

Ram EDM
(Sinker EDM, Plunge EDM, Die Sinking, Conventional EDM)

10 Ram EDMs—6 large ram EDMs: tank sizes up to 39 x 55”. We can ram EDM parts vertically up to 12 feet tall and horizontally up to 30 feet long.



● 16 station toolholders
● Precise indexing and orbiting
● Angular capabilities
● Machine threads into hardened materials
● Accuracies to +/- .0001”
● Surface finishes to 8 RMS

 ram

Small Hole EDM

7 Small Hole EDMS—3 CNC high speed small hole EDMs: up to 19.5” x 23.7” x 26” in Z. We have modified some machines so we can EDM holes into very tall parts.



● Modified machines to EDM holes into tall parts
● Small hole EDM—up to 36" deep
● Burr free holes
● EDM holes from .012" to .187"

 ram

Other Capabilities



● Six specialized wire EDM software stations
● Reverse Engineering
● Vice President, Steve Sommer, Mechanical Engineer
● Receive AutoCAD, DXF, and IGES files by E-mail
● Inspection: Optical Measuring Device, CNC Coordinate Measuring Machine, and Portable Coordinate Measuring Machine

 ram
